Industrial High-end Shuttle Sewing Machine for garments
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Type: | Industrial Sewing Machine |
| Brand Name: | Yuxing | Stitch Formation: | Lock Stitch |
| Mechanical Configuration: | Other | Max. Sewing Thickness: | 50mm |
| Stitch Length: | 25.4mm | Power: | 3.5kw |
| Overall Dimensions: | 3900*1400*1700mm | Feed Mechanism: | Needle Feed |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Gear, Motor, Bearing |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Egypt, Turkey, Russia | Showroom Location: | Egypt, Turkey, Russia |
| Marketing Type: | Hot Product 2019 | Certification: | CE/ISO9001 |

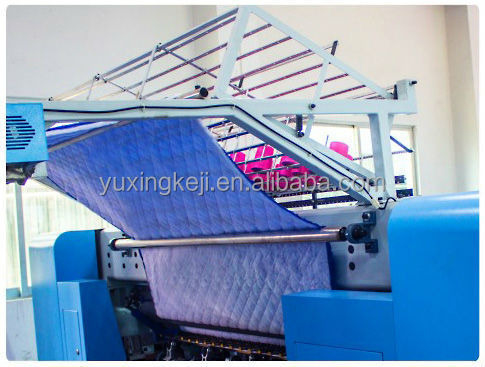

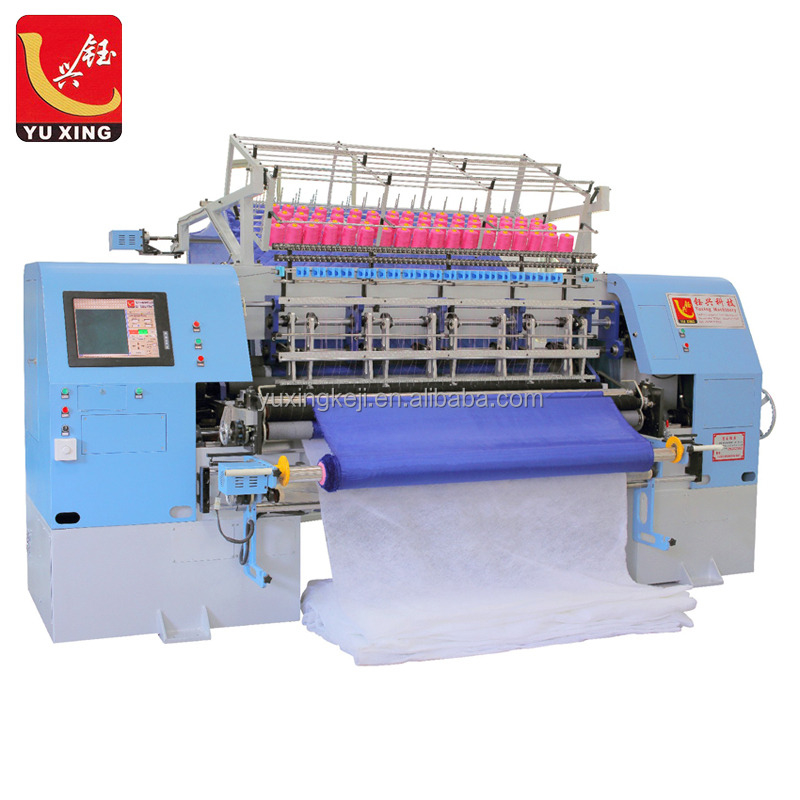

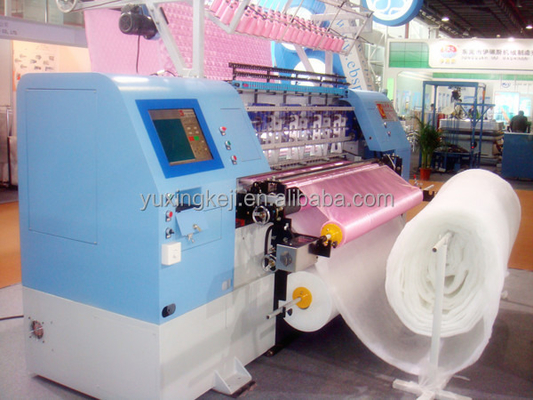

High Speed Computerized Lock Stitch(Shuttle) Multi-needle Quilting Machine YXS-64-2C(#10/ #7)
Machine component: Japan servo motor, Delta transducer,Japan bearing,Korean shuttle and German needles.
Specification:
|
Product Name |
High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine |
|
Model |
YXS-64-2C |
|
Size(L*W*H) |
3900*1400*1700mm |
|
Weight |
3400kg |
|
Quilting width |
1700mm |
|
Needle bar space |
3” (76.2mm) |
|
Quilting thickness |
≤50mm |
|
Rolling speed |
500-800r/min |
|
Output |
0-195m/hour |
|
Needle type |
#16,#19 |
|
X-axis movement |
254mm |
|
Needle space |
25.4mm |
|
Stitch |
2-6mm |
|
Rated voltage(AC) |
380V/50HZ,/220V/60HZ |
|
Power |
3.5KW |
Functions:
1.Adopt the advanced computer and mechanistic technology.

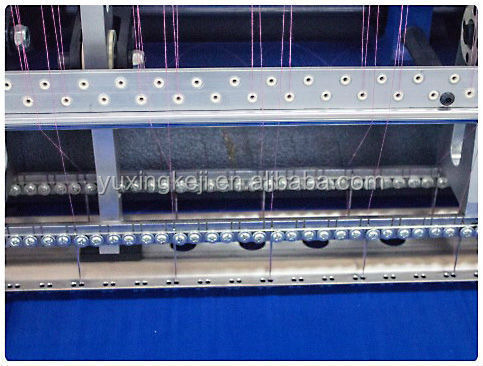

2.Needle bar running with needle bar frame, no need to add extra lube, avoid the materials be soiled by lube.
3.Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
4.Saddling rack and roller are driven by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2mm-6 mm.
7.360° random quilting and limitless multi-span and independent quilting.
8.Compensation function, an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques ,the machine is auto-stop when thread is broken.
10.The infrared system, make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.
Product Uses
Company Information
Yuxing Machinery Equipment Technology Co.,Ltd was found in 2000 , mainly manufacture
Lock stitch/chain stitch quilting machine,
Embroidery and quilting machine,
Cutting panel, fabric roller,bobbin winder etc with varied types.
We carry R&D for our products to keep putting new upgraded machine on market, produce and finishing machine parts, manage sell, and provide an over-all after-sale service.
Machine is for producing mattress,sleepping bag,garments,bedspread,duvet,cushion and other home textile goods.
Quality first /Customer paramount /Honest business /Credit-founded
Our Services
We guarantee one year free service from purchased date,response to service and work out a solution within 24 hours (china mainland), overseas maintainance is also available.
