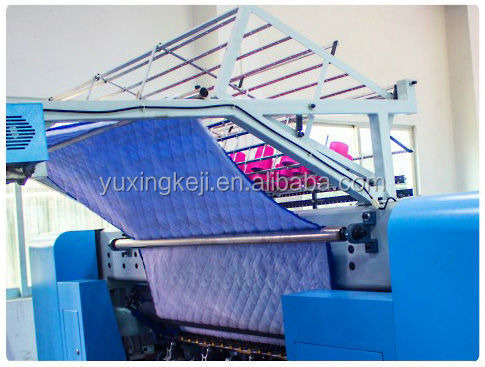

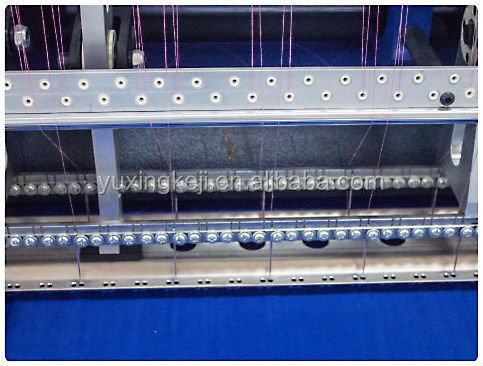

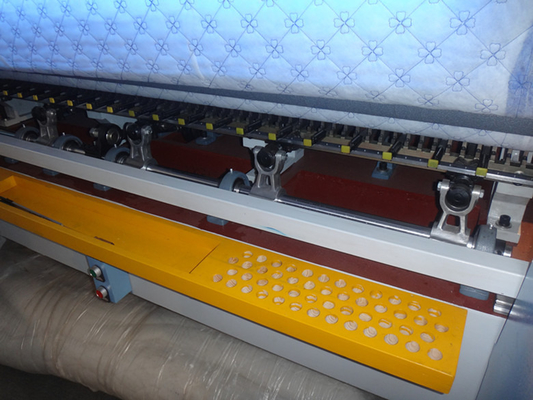

D Series Multi Needle Quilting Machine High Speed Multi-Needle

D Series Multi Needle Quilting Machine High Speed Multi-Needle

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  D Series Multi Needle Quilting Machine High Speed Multi-Needle Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yuxing
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Export packing
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Condition: New Place Of Origin: Guangdong, China
Brand Name: Yuxing Max Sewing Speed: 1200r/min
Max Sewing Thickness: 50mm Number Of Head: Muilt-needle
Moving Style: Head Moved Voltage: 220V Or 380V
Power: 7kw Dimension(L*W*H): 3900*1400*1700
Weight: 5000kg Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support Certification: CE

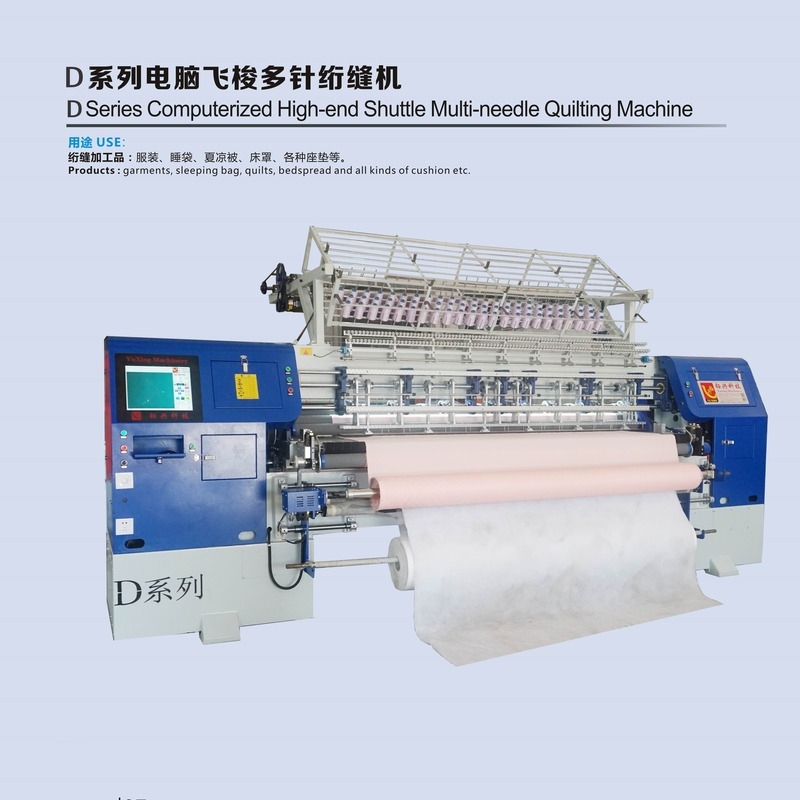

D Series High Speed Computerized Shuttle(Lock Stitch) Multi-needle Quilting Machine

Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.





YXS-64-2D

YXS-76-2D

YXS-94-2D/3D

YXS-118-2D/ 3D

YXS-128-2D/ 3D

Dimension(L×W×H)

3900*1400*1700

4200*1400*1700

4900*1400*1700

5500*1400*1700

5500*1400*1700

Quantity of needle bar

2

2

2/3

2/3

2/3

Quilting width

1700

2000

2450

3000

3300

Space between needle rows

76.2

76.2

76.2,152.4

76.2,152.4

76.2,152.4

Space between needles

25.4

25.4

25.4

25.4

25.4

X-axis movement dispacent

254

254

254

304

304

Thickness of quilting

≤50

≤50

≤50

≤50

≤50

Stitch length

2~6

2~6

2~6

2~6

2~6

Speed of operation(m/H)

20~200

20~200

20~200

20~200

20~200

Model of needle

16#,19#

16#,19#

16#,19#

16#,19#

16#,19#

Speed of main shaft(RPM)

500~1000

500~1000

500~1000

500~1000

500~1000

Total power required

3.5KW

3.5KW

4KW

5.5KW

5.5KW

Voltage

380V/50HZ

220V/60HZ

380V/50HZ

220V/60HZ

380V/50HZ

220V/60HZ

380V/50HZ

220V/60HZ

380V/50HZ

220V/60HZ

Gross weight

3800kg

4000kg

4800kg

5400kg

5600kg



Compare with the C series Lock stitch quilting machine:

  1. Bearing with lock core, stable and not easy to heat

  2. Permanent magnet inductor, less loss current, more stable pattern

  3. Using synchronous belt drive, uniform rotation speed

  4. Encoder program, machine information transmission more accurate

  5. Adopt aviation aluminum strip, lighter material, faster machine speed

  6. Angle of fuselage for easy shuttle change

  7. Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster

  8. Big Four Volt Power, Faster Machine Running, up to 1000r/min

Pattern show

D Series High Speed Multi-needle Quilting MachineD Series High Speed Multi-needle Quilting MachineD Series High Speed Multi-needle Quilting MachineD Series High Speed Multi-needle Quilting Machine





Computer profile

Our company was founded in 2002. Group successfully introduced the implementation of ISO9001: 2000 international quality management system. As honored as "Private Scientific and Technology Enterprises" by Dongguan science and technology bureau and dongguan intellectual property office. Now has nearly 600 employees, including machinery, automation, computer and other professional engineering and technical personnel more than 100 people. The company has a strong product development and improvement capabilities, with quilted embroidery equipment a number of key patented technology.

Over the years, Yuxing machines with its stable

quality and quality of the best-selling service throughout the country, more than 10 large and medium-sized cities in the country with offices and resident technical service personnel.







Our service

One year guarantee and lifetime maintenance.We always adhere to the principle of "quality first, customer first, integrity management, credit standing".
