Yuxing industrial multi needle sewing machine for quilt with shuttle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Mattress Or Quilt Factory | Showroom Location: | Egypt, Turkey, Pakistan, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/60HZ,380v/50HZ | Power: | 4kw |
| Dimension(L*W*H): | 6100*1200*1700 | Weight: | 4800kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Belongs To: | Industrial Multi Needle Quilting Mattress Protectors Machine | Certification: | CE,ISO9001:2008 Approved |
| Capacity: | 0-195m/h | Width: | 3.2m / 128inches |
| Quilting Thickness: | <50mm | Stitch: | 2-6mm |
| X-axis Movement: | 254mm | Needle Type: | #16,#19 |
| Application: | Used For Garments,bags,car Seat Cover,sofa Protectors,cushion | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Egypt, Turkey, Pakistan, South Africa | Certification: | CE,ISO |

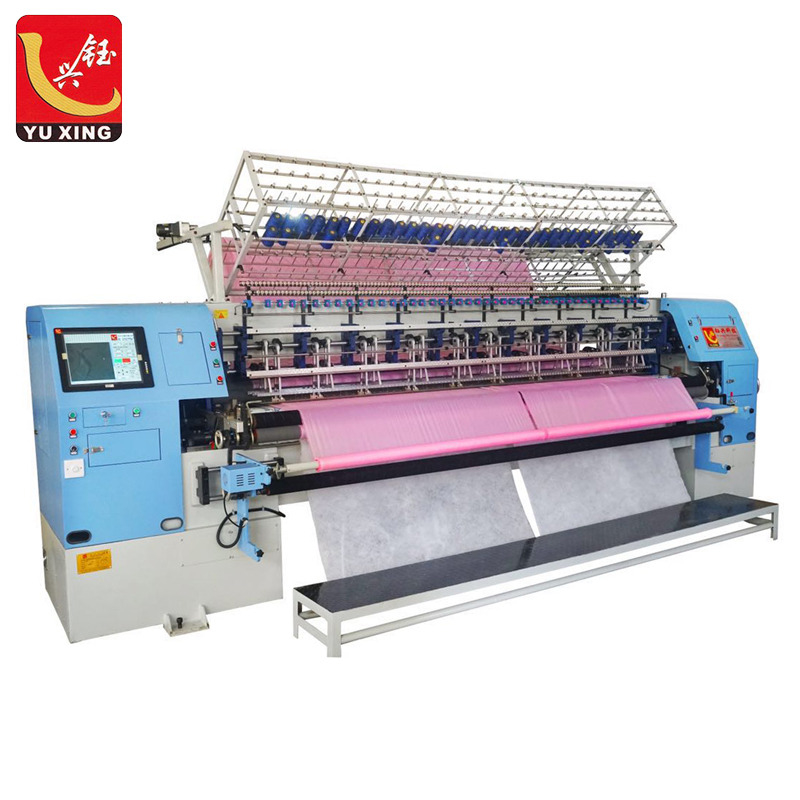

High Speed Computerized Shuttle Lock Stitch Multi-needle Quilting Machine
YXS-128-3C
Product Description
It is widely used for garments,handbags,car seeat covers,sleeping bags,sofa cover,mattress protectors,blankets,cushion etc.
Specification:
Model:YXS-128-3C 152.4(3"+3") Size(L*W*H):6100*1200*1700mm
Weight:4800kg Quilting width:3200mm
Needle bar space:3C 152.4(3"+3") Quilting thickness:≤50mm
Rolling speed:500-800r/min Output:0-195m/hour
Needle type:#16,#19 X-axis movement:254mm
Needle space:25.4mm Stitch: 2-6mm
Power:4KW Rated voltage(AC):380V/50HZ,/220V/60HZ
Special feature:
1.Adopt the advanced computer and mechanistic technology.
2.The needle bar running with neddle bar frame,no need to add extra lube and avoid the materials be soiled by lube.
3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4.Sadding rack and roller are drivern by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer and the speed can reach 800r/min,the stitch can be set between 2mm-6mm.
7.360° randon quilting and limitless multi-span and independent quilting.
8.Compensation function,an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10.The infrared system ,make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.

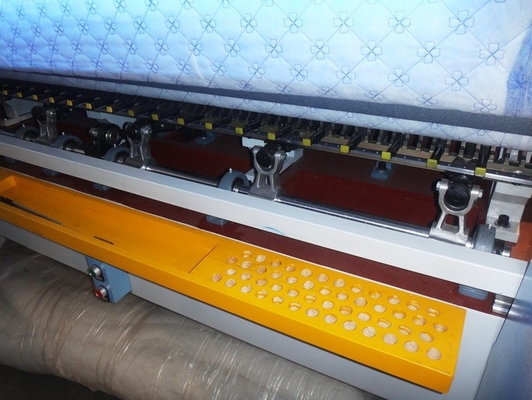

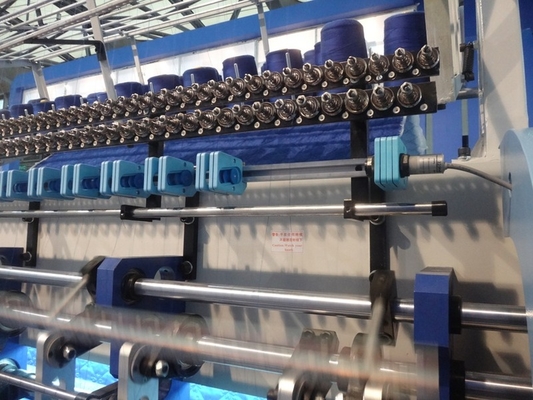

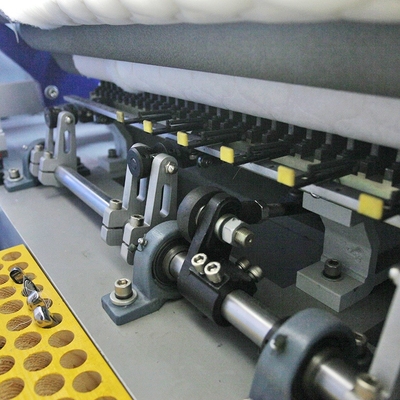

Core machine parts:
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can sent to customer factory for installation, and customer staff can come our factory for training for free.
CE approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding machine,
more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and
Technological Enterprises" by Dongguan city Science & Techonology Bureau and Dongguan City
Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive
market,we make progress and get innovation constantly.We firmly believe high quality and good
service are the best support for users' trust.
Welcome to visit our factory any time!^_^
