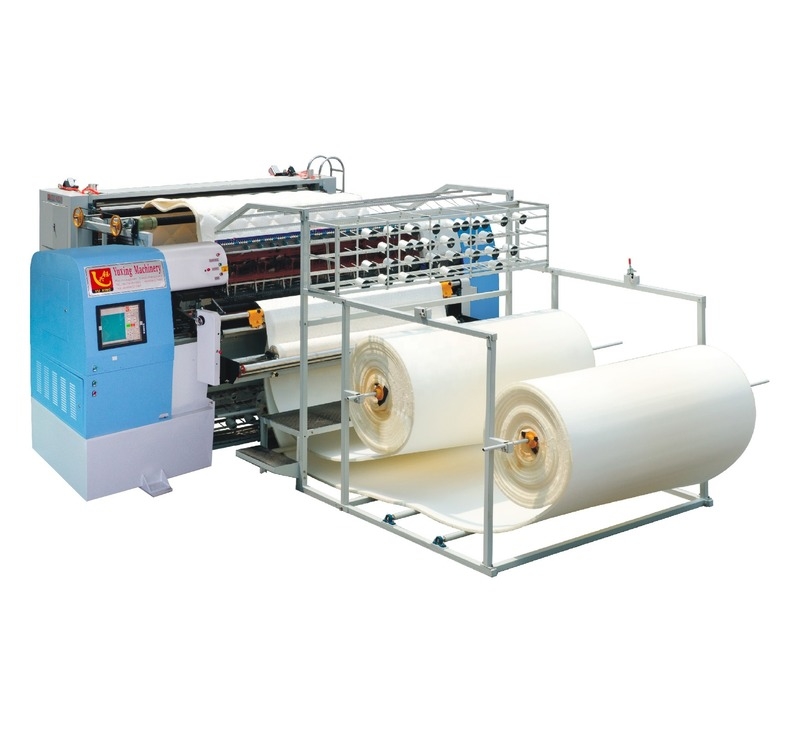

Yuxing Industrial Quilting Machine Industrial Quilting Sewing Machine For Mattress Cover

Computerized Non-Shuttle (chain stitch) Multi-Needle Quilting Machine YXN-94-3C

It's used for quilting advanced mattress,bedding product, carpet,cushion etc with various kinds of designs.

Function:

1.Adopt the advanced process design.

2.Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3.High rigidity machine body, perfect protecting equipment and steady-going control system.

4.X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5.Test the working state of all sensors and computer in real time.

6.Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

7.Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.

8.360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)

9.Steady running ,high speed, low noise, very thick material with precise quilting.

10.Ringing notice when start machine.

Difference

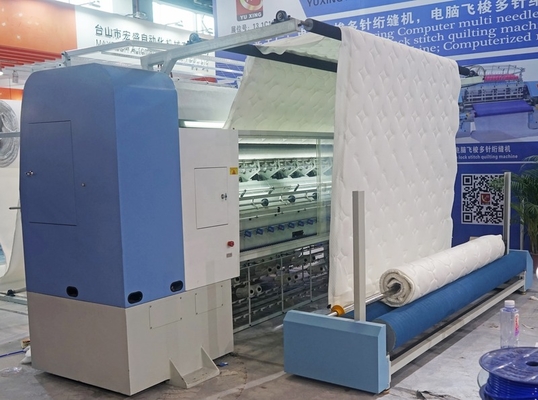

YXN-94-3D is upgrade model from YXN-94-3C. Speed is higher, machine structure and body is stronger.

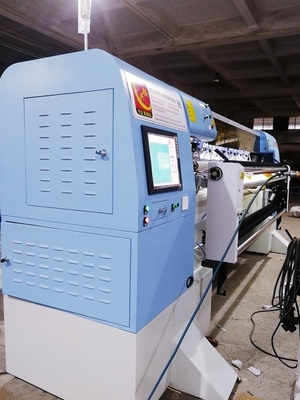

Below picture is upgrade place.

(YXN-94-3D and YXN-4-3C both will use new upgrade software, except x,y motor use servo motor, main motor will use servo motor too)

Optional adding function: edge cutting (need extra charge)

Adding the edge cutting blade on the back of quilting machine

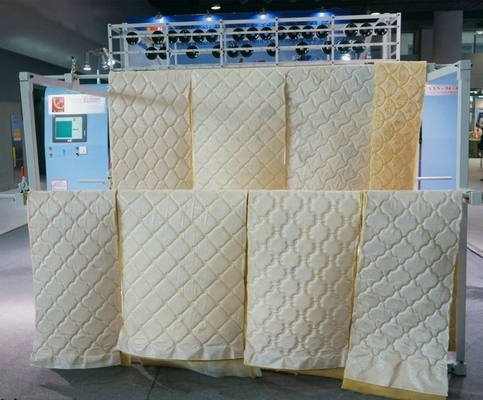

Finished product view
