Yuxing Shuttle Quilting Machine Lock Stitch Multi Needle Bed Cover Quilting Machine 94 Inch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 1000r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/60HZ,380v/50HZ | Power: | 3.5kw |
| Dimension(L*W*H): | 4600*1500*1700 | Weight: | 5000 |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Belongs To: | Lock Stitch Multi Needle Quilting Machine For Sleeping Bag | Certification: | CE,ISO |

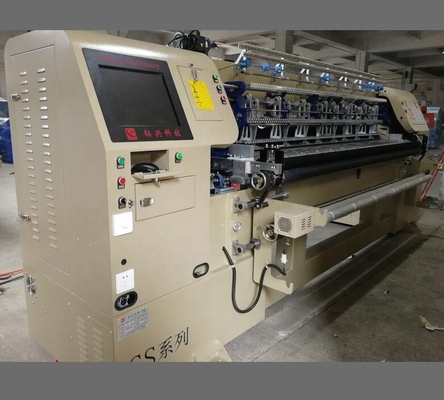

High Speed Computerized Shuttle(lock stitch) Multi-needle Quilting Machine
YXS-96-3CS(3")
Product Description
It is widely used for garments,handbags,sleeping bags,sofa protectors,
mattress protectors,cushion etc.
Function:
1, Computerized speed governing , max.1000r/min.

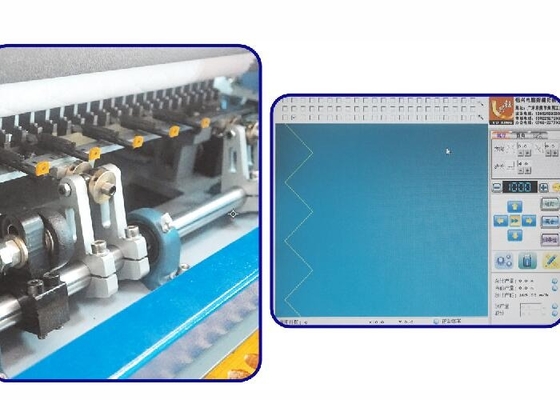

2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
| YXS-96-2/3CS | |
| Dimension(L×W×H) | 4300*1500*1700 |
| Quantity of needle bar | 3 |
| Quilting width | 2450 |
| Space between needle rows | 76.2(3') / 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis movement dispacent | 254 |
| Thickness of quilting | ≤50 |
| Stitch length | 2~8 |
| Speed of operation(m/H) | 10~210 |
| Model of needle | 16#,19# |
| Speed of main shaft(RPM) | 500~1000 |
| Total power required | 5.5KW |
| Voltage |
380V/50HZ; 220V/60HZ |
| Gross weight | 4300kg |
Compare with the C series Lock stitch quilting machine:
-
Bearing with lock core, stable and not easy to heat
-
Permanent magnet inductor, less loss current, more stable pattern
-
Using synchronous belt drive, uniform rotation speed
-
Encoder program, machine information transmission more accurate
-
Adopt aviation aluminum strip, lighter material, faster machine speed
-
Angle of fuselage for easy shuttle change
-
Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster
- Big Four Volt Power, Faster Machine Running, up to 1000r/min
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
