1200rpm Industrial Quilting Machine Industrial Stitching Multi Needle Quilting Machine For Mattress Making
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Place Of Origin: | Guangdong, China | Brand Name: | YUXING |
|---|---|---|---|
| Condition: | New | Applicable Industries: | Manufacturing Plant, Mattress/ Home Textile Manufacturer |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Voltage: | 380V/220V 50HZ/60HZ |
| Power: | 7.5KW | Dimension(L*W*H): | 5000*1600*2000 |
| Weight: | 6KG | Warranty: | 1 Year |
| Showroom Location: | Turkey, South Africa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Output: | 10m-250m/h | Speed: | 1200rmp |
| Application: | Used For Mattress Quilting | Quilting Thickness: | Max. 8cm |
| Quilting Width: | 2450mm | Stitch: | 2-8mm |
| Needle Space: | 1 Inch | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, South Africa | Certification: | CE ISO |

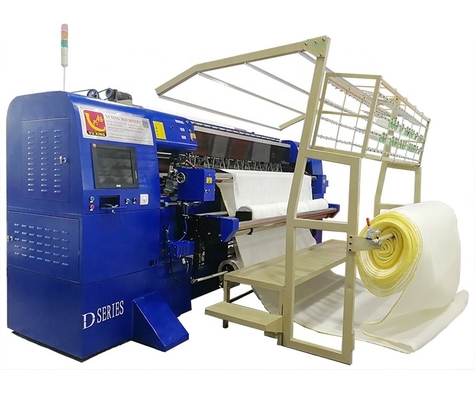

Computerized non-shuttle chain stitch multi needle mattress quilting machine
(YXN-94-3D)
Product Description
It is mainly used for quilting advanced mattress,carpet,cushion etc.
Features:
- Thread break detectors on the needle and the looper threads.
- CE approved.
- Pattern compensation function.
- If shut off electricity, program would be kept in the computer.
Important parameter:
| Product Name | Computerized non-shuttle chain stitch multi needle mattress quilting machine |
| Model | YXN-94-3D |
| Size | 5000*1650*2000mm |
| Quilting width | 2485mm |
| Rolling speed | 600-1200r/min |
| Output | 10-250m/hour |
| Quilting thickness | 1mm-80mm |
| X-axis movement | 410mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Needle type | #21-#24 |
| Power | 7.5KW |
Special feature:
1.Adopt the advanced process design.
2.Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3.High rigidity machine body, perfect protecting equipment and steady-going control system.
4.X,Y motors are driven by Panasonic servo motor system, and principal axis takes frequency ports system.
5.Test the working state of all sensors and computer in real time.
6.Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7.Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8.360°quilting and limitless multi-span and independent quilting(can do jump patterns).
9. Computer can be in store 1000 patterns with 300 patterns already existing, and with pattern editing function.
10.Steady running, high speed, low noise, very thick material with precise quilting.
11.Multi-span and independent quilting with pattern compensation function.
12.Ringing notice when start machine.
Packaging & Shipping
All the machine are packed in elastic film of wooden case as required before shipping.
Usually,our goods can be shipped in 20 days aftering receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standingat the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome you to visit our factory any time!!^_^
