Yuxing Industrial Quilting Machine Mattress Production Machines
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey, Pakistan, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 900r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/60HZ,380v/50HZ | Power: | 5kw |
| Dimension(L*W*H): | 5000*1650*2000mm | Weight: | 4000kg |
| Warranty: | 1 Year | Belongs To: | Industrial Quilting Machine-mattress Production Machines |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey, Pakistan, South Africa |
| Certification: | CE,ISO |

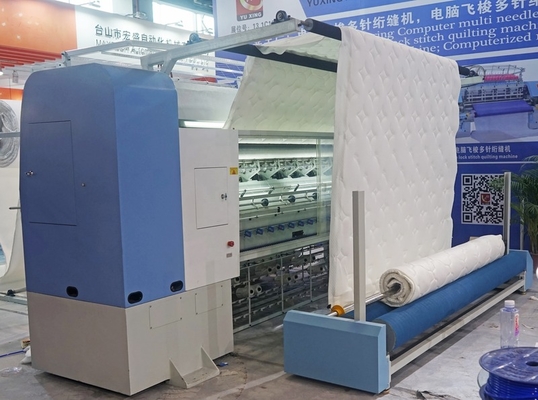

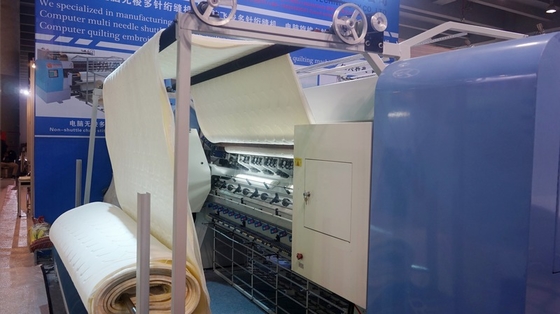

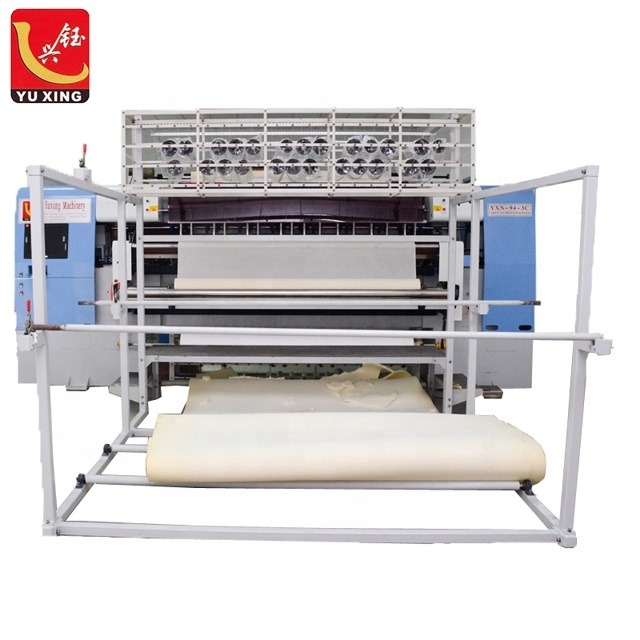

Computerized Non-shuttle(chain stitch) Multi-needle Quilting Machine
YXN-94-3C (3"+3")
Product Description
The quilting machine is widely used for quilting advanced mattress,cushion etc.
Important parameter:
|
Product Name |
Computerized Non-shuttle (chain stitch) Multi-needle Quilting Machine |
|
Model |
YXN-94-3C(3"+3") |
|
Size(L*W*H) |
5000*1650*2000mm |
|
Weight |
4000kg |
|
Quilting width |
2485mm |
|
Needle bar spacing |
76.2,76.2 (3"+3") |
|
Quilting thickness |
50mm |
|
Rolling speed |
600-900r/min |
|
Output |
10-180m/hour |
|
Needle type |
#21-#24 |
|
X-axis movement |
410mm |
|
Needle space |
25.4mm |
|
Stitch |
2-8mm |
|
Rated voltage(AC) |
As request |
|
Power |
6.5KW |
Special feature:
1.Adopt the advanced process design.
2.Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3.High rigidity machine body, perfect protecting equipment and steady-going control system.
4.X,Y motors are driven by Panasonic servo motor system, and principal axis takes frequency ports
system.
5.Test the working state of all sensors and computer in real time.
6.Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the
speed by computer.
7.Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8.360°quilting and limitless multi-span and independent quilting.Computer can be in store 1000
patterns with 300 patterns already existing, and with pattern editing function.
9.Steady running, high speed, low noise, very thick material with precise quilting.
10.Multi-span and independent quilting with pattern compensation function.
Important machine parts:
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
Certificates:
About our company:
Our company was established in 2002,is specialized in manufacturing computerized multi-needle quilting machine,computerized quilting and embroidery machine,cutting machine and bobbin winding machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and
Technological Enterprises" by Dongguan city Science & Techonology Bureau and Dongguan City
Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive
market,we make progress and get innovation constantly.We firmly believe high quality and good
service are the best support for users' trust.
Welcome to visit our factory any time!!^_^
