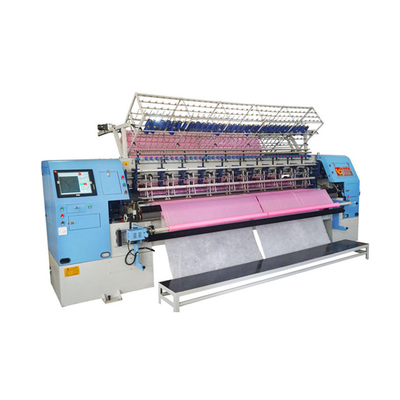

128" Multi-Needle Lock Stitch Quilting Machine Computerized YXS-128-3C
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Brand Name: | Yuxing | Model Number: | YXS-128-3C |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/60HZ,380v/50HZ | Power: | 4kw |
| Dimension(L*W*H): | 6100*1200*1700 | Weight: | 4800kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | CE,ISO | Belongs To: | Industrial Multi Needle Quilting Mattress Protectors Machine |
| Certification: | CE,ISO9001:2008 Approved | Capacity: | 0-195m/h |
| Speed: | 500-800r/min | Width: | 3.2m / 128inches |
| Quilting Thickness: | <50mm | Stitch: | 2-6mm |
| X-axis Movement: | 254mm | Needle Type: | #16,#19 |
| Application: | Used For Garments,bags,car Seat Cover,sofa Protectors,cushion |
High Speed Computerized Shuttle Lock Stitch Multi-needle Quilting Machine
YXS-128-3C
Product Description
It is widely used for garments,handbags,car seeat covers,sleeping bags,sofa cover,mattress protectors,blankets,cushion etc.
Specification:
Model:YXS-128-3C 152.4(3"+3") Size(L*W*H):6100*1200*1700mm
Weight:4800kg Quilting width:3200mm
Needle bar space:3C 152.4(3"+3") Quilting thickness:≤50mm
Rolling speed:500-800r/min Output:0-195m/hour
Needle type:#16,#19 X-axis movement:254mm
Needle space:25.4mm Stitch: 2-6mm
Power:4KW Rated voltage(AC):380V/50HZ,/220V/60HZ
Special feature:
1.Adopt the advanced computer and mechanistic technology.
2.The needle bar running with neddle bar frame,no need to add extra lube and avoid the materials be soiled by lube.
3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4.Sadding rack and roller are drivern by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer and the speed can reach 800r/min,the stitch can be set between 2mm-6mm.
7.360° randon quilting and limitless multi-span and independent quilting.
8.Compensation function,an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10.The infrared system ,make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.

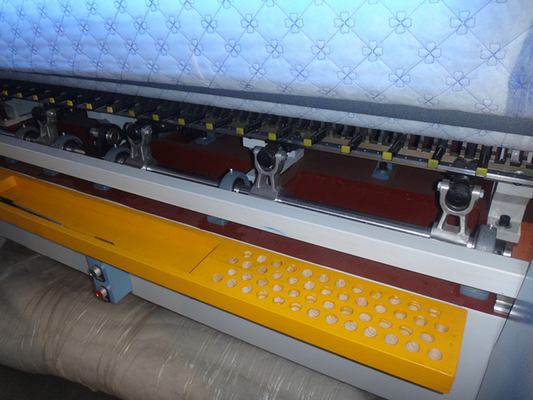

Core machine parts:
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can sent to customer factory for installation, and customer staff can come our factory for training for free.
CE approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
