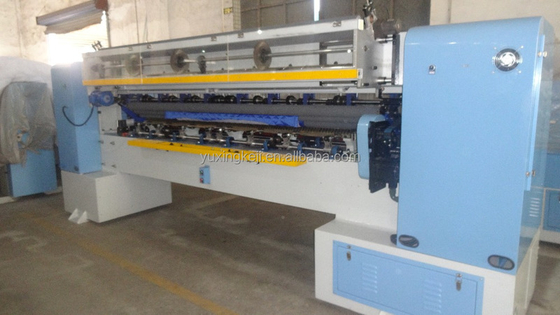

Affordable computerized quilting machine for blanket making with edge cutting device
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Garments And Home Textile Factory | Showroom Location: | Egypt, Turkey, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/380v | Power: | 4.8kw |
| Dimension(L*W*H): | 5000*1400*1700mm | Weight: | 4600kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Auto Stop System: | Yes | Other Quilting Width For Choice: | 64" 76" 118" 128" |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Egypt, Turkey, South Africa |
| Certification: | CE,ISO |

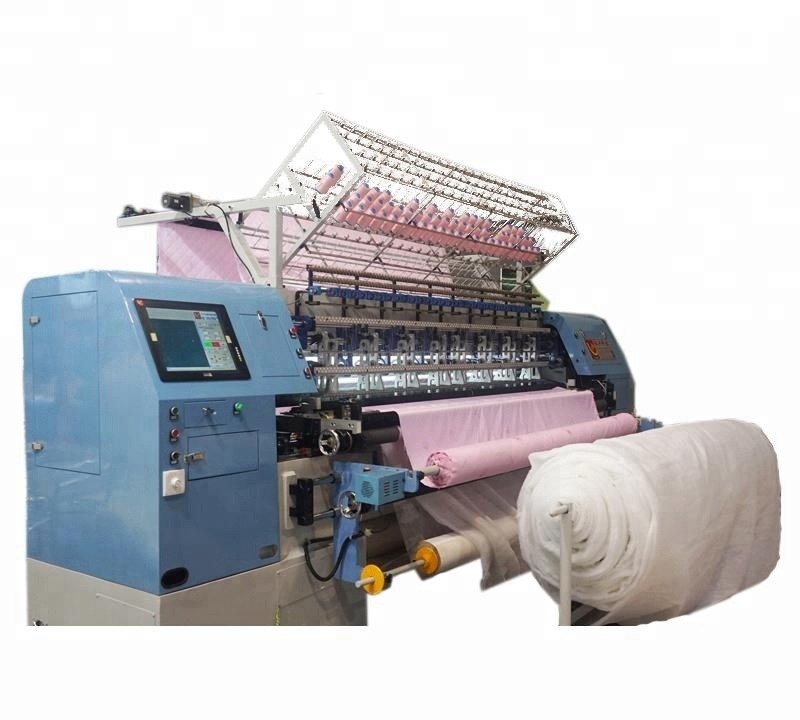

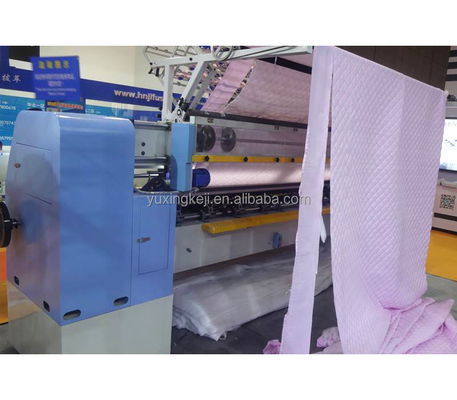

Computerized high-end shuttle multi-needle quilting machine with edge cutting device
YXS-94-3C 6" The machine got other sizes like 76 inches,94 inches,128 inches.
Product Description
Usage:bedspreads,garments,mattress thin pads,sleeping bags,and related products.
Features:
- Designs overthrow adjuster for width-for width distortion adjustment.
- Speed can be reach to 800r/min.
- Includes 300 standard patterns,960 patterns can be stored in computer.
- Computer system with self diagnostic troubleshooting capabilities.
Compared with the common shuttle quilting machine,high speed shuttle quilting machine got more advantages:
A) more stronger structure,and running with saddling rock line guide,so the machine running more
steady and patterns making more precise,stitch more pretty.
B) integration structure,easier for shipment and dismounting.

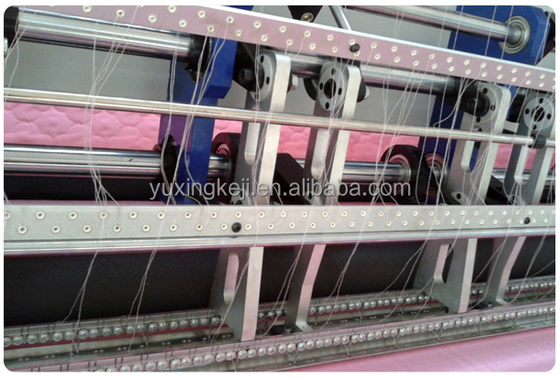

C) needle bar and compression bar take rocker-style structure,less noise,less maintaince cost and no need to add oil.
D) output is 30-40% higher.
E) standard assembling is including original imported shuttle,auto stop device, and fabric feed-in
device with fabric reversing.
F) During the producing process of high speed quilting machine,in some range of quilting thickness,
no need to adjust the machine, more simpleoperation.
Important parameter:
|
Product Name |
High Speed Computer Shuttle Multi-needle Quilting Machine |
|
Model |
YXS-94-3C 6" |
|
Size(L*W*H) |
5000-200-700mm |
|
Weight |
3500kg |
|
Quilting width |
2450mm |
|
Needle bar spacing |
3 inch |
|
Number of bars |
3 |
|
Quilting thickness |
≤50mm |
|
Sewing speed |
300-800r/min |
|
Output |
0-195m/hour |
|
Needle type |
#16,#19 |
|
X-axis movement |
254mm |
|
Needle spacing |
25.4mm |
|
Stitch Sizes |
2-6mm |
|
Rated voltage(AC) |
380V/50HZ,/220V/60HZ |
|
Power |
3.5KW |
|
Power requirements |
Customer power requirements available upon request. |
Special feature:
1.Adopt the advanced computer and mechanistic technology.
2.The needle bar running with needle bar frame,no need to add extra lube and avoid the materials be soiled by lube.
3.Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
4.Saddling rack and roller are driven by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer and the speed can reach 800r/min,the stitch can be set between 2mm-6mm.
7.360° random quilting and limitless multi-span and independent quilting.
8.Compensation function,an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10.The infrared system ,make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.
Certification:
About our company:
Our company was established in 2002,is specialized in manufacturing computerized multi-needle quilting machine,cutting machine and bobbin winding machine,more than 10 kinds
of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fiercecompetitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome to visit our factory any time!!^_^
