1000rpm High efficiency multi needle computerized embroidery machine quilting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Garments Factory | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Type: | Quilting Machine | Operation: | Computerized |
| Overall Dimensions: | 5400*1400*2000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic, Easy To Operate, Quilting And Embroidery At The Same Time | Power: | 5kw |
| Maximum Speed: | 1000rpm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Worktable Size: | 3.3m |
| Head Interval: | 50.8 | Embroidery Area: | All |
| Head Quantity: | 33 | Work Thickness: | 20-300gsm |
| Application: | Jacket, Bed Cover, Car Mat, Pillow Cover, Cushions | Weight: | 3000kg |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey, Pakistan, South Africa |
| Showroom Location: | Turkey, Pakistan, South Africa | After-sales Service Provided: | Free Spare Parts, Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Marketing Type: | Ordinary Product | Certification: | ISO,CE |
Computerized Quilting and Embroidery Machine
Product Description
USES: Quilts, coverlet, bedcover, leather, shoes, bags, cushion, car mat, and so on.
Patterns and Usage
Important parameter:
|
Product Name |
Computerized Quilting and Embroidery Machine |
|
Model |
YXH-128-50.8B |
|
Size(L*W*H) |
5400*1400*2000mm |
|
Weight |
3000kg |
|
Quilting width |
3352mm |
|
Needle space |
50.8 |
|
X-axis movement |
260 |
|
Head quantity |
33 pieces |
|
Rotating shuttle |
Big rotating shuttle |
|
Quilting thickness |
20-600g |
|
Stitch |
Binary system:0.15-12.7mm |
|
Needle storage capacity |
120,000 |
|
Pattern storage capacity |
960 |
|
Needle type |
#14,#16 |
|
Principal drive |
Servo motor drive |
|
Rated voltage(AC) |
As required |
|
Power |
5KW |
Special feature:
1.Unique quilting and embroidery drawing and plate making function,and immediately drawing and
proofing efficient function.Compatible with the general embroidery machine function and embroidery
machine plate reading function in the same industry.
2.Precision finishing,and no need to modify the pattern,the difference between the finished patterns
with the computer-ready patterns is tiny.
3.Advance computer control and mechanical manufacturing technology,to ensure that the noise of the
machine is very small.
4.The head of quilting and embroidery machine has a simple structure,reliable performance and easy
maintenance features.
5.Taking the big rotating shuttle,the max high speed can reach 850r/min.
6.Saddling rack,roller and principal motors are driven by servo equipment.
7.360° quilting and embroidery,limitless multi-span and independent quilting and embroidery.
8.Stitch can be adjusted and pattern compensation function,an effective solution for graphical variant
when quilting and embroidery thick material.
9.Auto-stop system when thread is broken,auto and manual fill-stitch function.
10.Automatic lubrication system.
11.Machine head can be chosen randomly for quilting and embroidery.
12.Ringing notice when start machine.

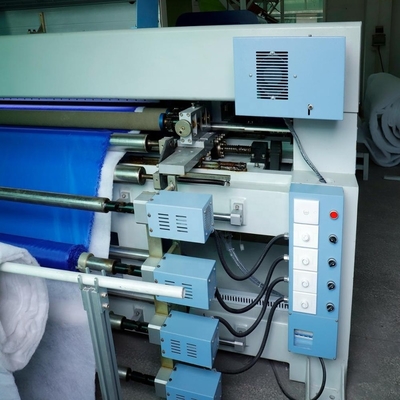

Important machine parts:
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001 approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding
machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and
Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City
Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive
market,we make progress and get innovation constantly.We firmly believe high quality and good
service are the best support for users' trust.
