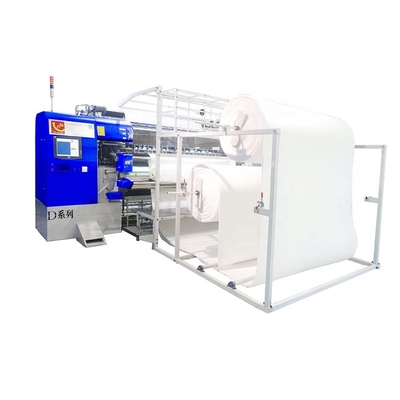

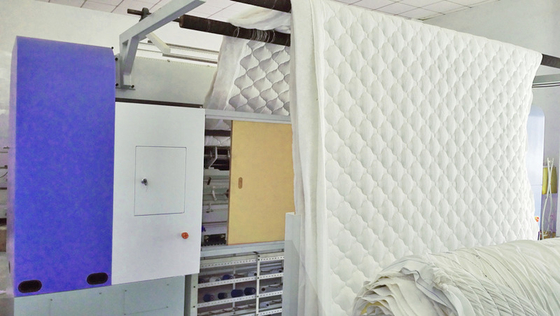

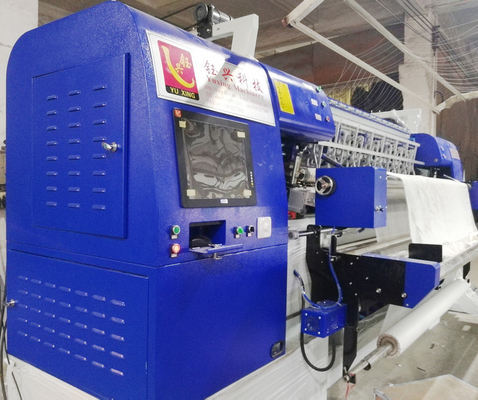

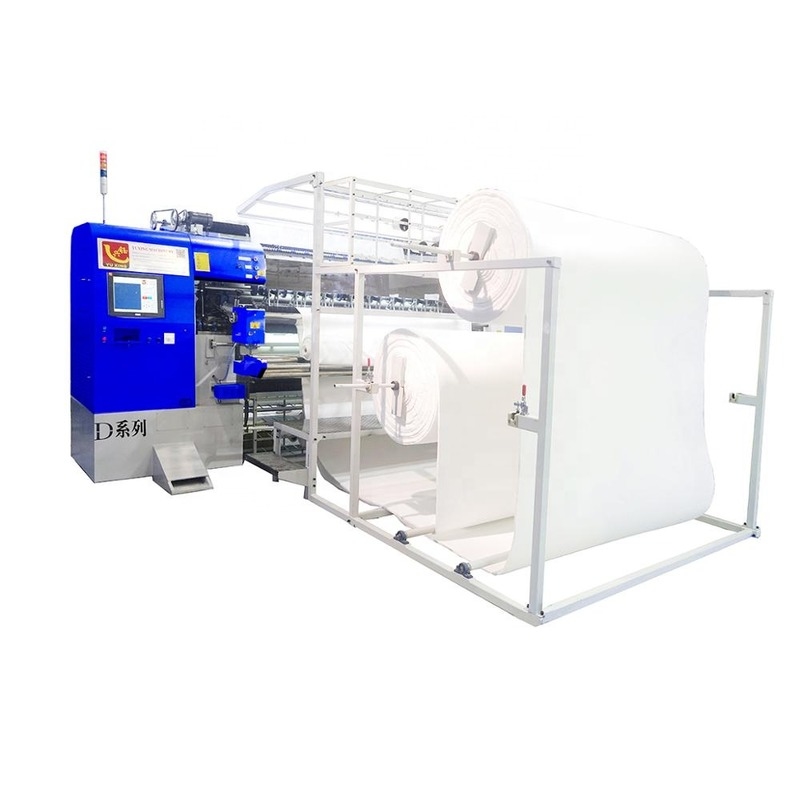

Computerized Shuttleless Quilting Machine Non-Shuttle Multi-Needle Quilting Machine Matress Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Mattress/quilt/cushion Manufacturing | Showroom Location: | Turkey, Pakistan, South Africa |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Guangdong, China |
| Brand Name: | YUXING | Max Sewing Speed: | 1200r/min |
| Max Sewing Thickness: | 80mm | Number Of Head: | Multi-needle |
| Moving Style: | Frame Moved | Voltage: | 380v/220v |
| Power: | 7.5kw | Dimension(L*W*H): | 5000*1650*2000 |
| Weight: | 6500 | Warranty: | 1 Year |
| Application: | Comforter Quilt Blanket Mattress | Type: | Multi Needle Quilting Machine |
| Operate: | Easy And Computerized | Work Width: | 2400mm |
| 360 Degree Quilting: | Yes | When Thread Broken: | Machine Auto Stop |
| Pattern Editing: | Yes | Jump And Tack: | Yes |
| Belongs To: | Quilting Machine | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Pakistan, South Africa | After-sales Service Provided: | Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Certification: | ISO/CE |
Product Description
Parameter:
|
Product Name |
Computer Non-shuttle (chain stitch) Multi-needle Mattress Quilting Machine |
|
Model |
YXN-94-3D(3"+3") |
|
Size(L*W*H) |
5000*1600*2000mm |
|
Weight |
6000kg |
|
Quilting width |
2485mm |
|
Needle bar spacing |
50.8,76.2,(2"+3");76.2,76.2(3"+3") |
|
Quilting thickness |
80mm |
|
Rolling speed |
600-1200r/min |
|
Output |
60-230m/hour |
|
Needle type |
#21-#24 |
|
X-axis movement |
410mm |
|
Needle space |
25.4mm |
|
Stitch |
2-8mm |
|
Rated voltage(AC) |
380V/50HZ,/220V/60HZ |
|
Power |
7.5KW |
Function:
1.Adopt the advanced process design.
2.Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3.High rigidity machine body, perfect protecting equipment and steady-going control system.
4.X,Y motors are driven by servo system, and principal axis takes frequency ports system.
5.Test the working state of all sensors and computer in real time.
6.Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7.Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.
8.360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)
9.Steady running ,high speed, low noise, very thick material with precise quilting.
10.Ringing notice when start machine.
Patterns and Usage
